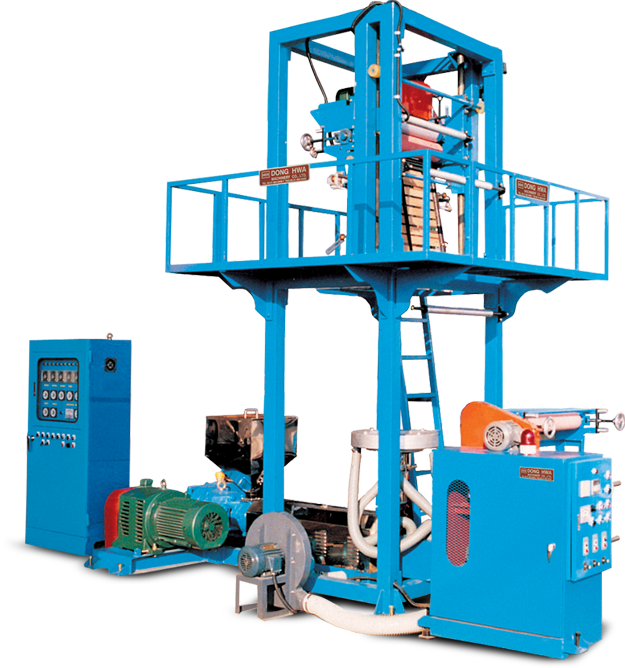

싱글 압출기
D
H
M
-
4
0

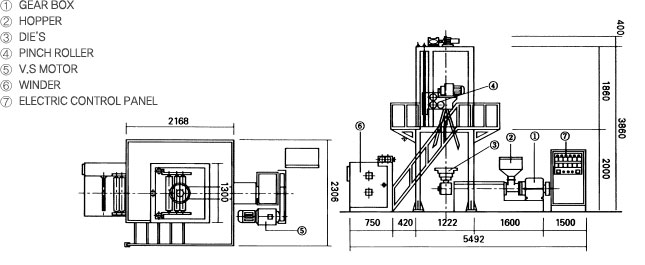

외형도
사양
| ITEM | UNIT | DHS-45 | DHS-50 | DHS-55 | DHS-60 | |
|---|---|---|---|---|---|---|
| FEATURE | MAX.EXTRUSION OUTPUT (LD/HD) | kg/hr | 25 ~ 30 | 38 ~ 45 | 40 ~ 55 | 48 ~ 60 |
| WIDTH OF THE FILM | m/m | 150 ~ 400 | 250 ~ 650 | . | 800 ~ 1300 | |
| EXTRUDER | SCREW DIAMETER | m/m | Ø45 | Ø50 | Ø55 | Ø60 |
| LENGTH/DIAMETER
RATIO OF SCREW (L/D) |
. | 28:1 | 28:1 | 28:1 | 28:1 | |
| MAIN MOTOR | Hp | V.S 15 | V.S 20 | V.S 30 | V.S 40 | |
| HEATER CAPACITY | kw | 4 | 6 | 7 | 8 | |
| TAKE-UP | PINCH ROLLER | m/m | 600 | 800 | 1000 | 1400 |
| TAKE UP MOTOR | Hp | V.S 1 | V.S 1 | V.S 1 | V.S 2 | |
| TAKE UP SPEED | m/min | 10 ~ 70 | 10 ~ 70 | 10 ~ 70 | 10 ~ 70 | |
| TAKE OFF SIZE | m/m | 2168x1906x4260 | 2168x2306x4260 | 2168x2506x4500 | 2695x2906x6000 | |
| WINDER | TYPE | . | 2 SHAFT AUTO/SEMI-AUTO TYPE | |||
| WINDING DIAMETER | m/m | Ø500 | Ø500 | Ø500 | Ø600 | |
| WINDING MOTOR | kg/㎠ | T/Q 30 | T/Q 30 | T/Q 30 | T/Q 30 | |
| WINDING SIZE | kg | . | ||||
| OPTION DEVICE | Hopper Loader /Embossing Roller / Surface Treater | |||||
