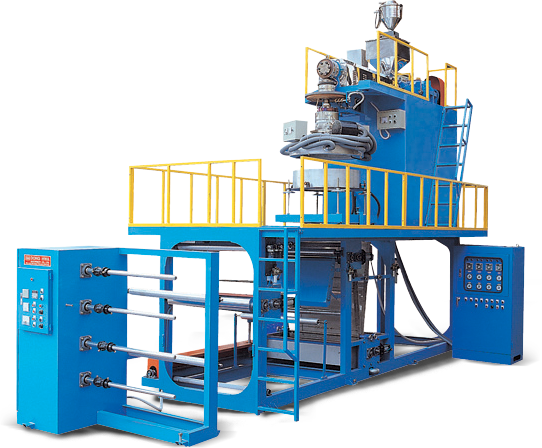

P.P 필름 압출기
D
H
F
-
P
P
-
Ø
5
0
/
8
0
0
L

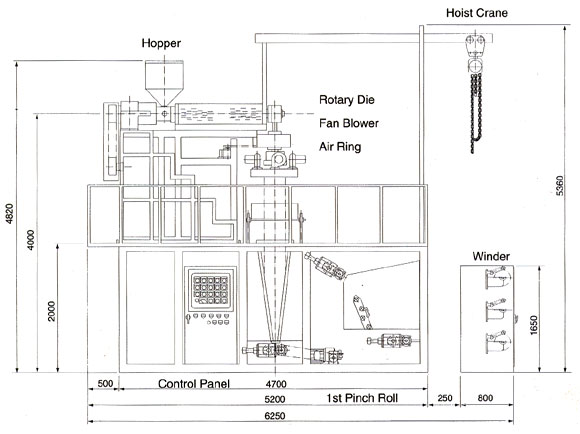

외형도 : 6250 x 2000W x 5360H
사양
| ITEM | DHF-PP-Ø50/800L | DHF-PP-Ø60/1000L |
|---|---|---|
| SCREW DIAMETER | Ø50mm | Ø60mm |
| FILM THICKNESS | 0.03 ~ 0.1mm | |
| FILM(ROLLER) WIDTH | 600mm(Max.)(800mm) | 800mm(Max.)(1000mm) |
| PRODUCTION CAPACITY | 40kgs/hour(Max.) | 60kgs/hour(Max.) |
| LINE SPEED | 15m - 70m/min | 15m - 70m/min |
| MAIN MOTER | V.S Motor 25HP | V.S Motor 30HP |
| WINDER TYPE | Bobbin winder | |
