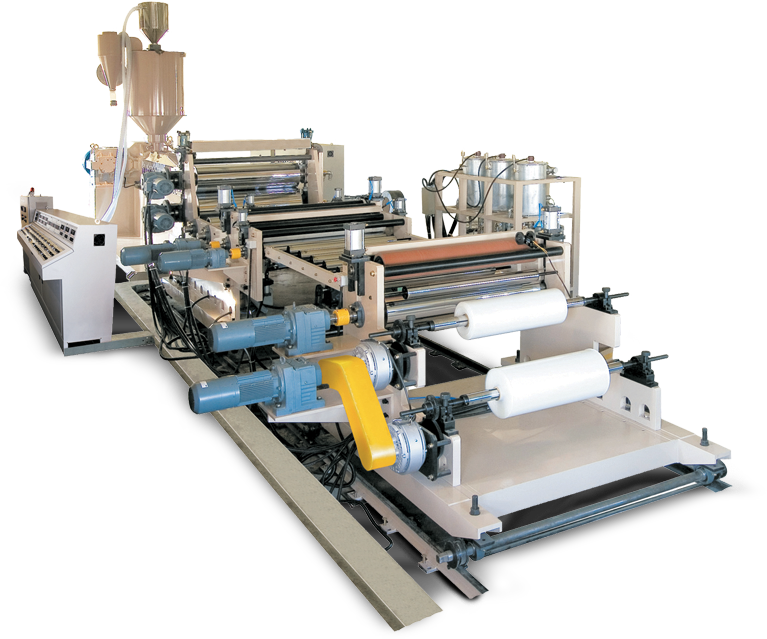

P.P P.S 시트성형기
D
H
-
T
1
2
0
-
Gear Pump Unit
-
T-die Unit
-
H/Cooling Unit
-
Winder Unit
-
Polishing Unit

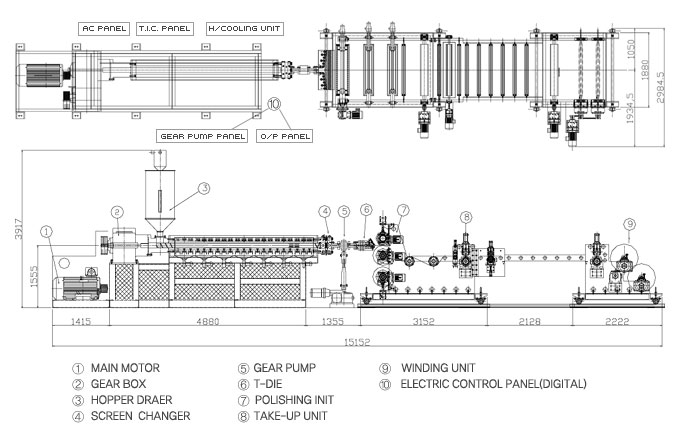

외형도
사양
| ITEM | UNIT | EXT.120MM | EXT.100MM | EXT.90MM | |
|---|---|---|---|---|---|
| EXTRUDER | SCREW | L/D | L/D=34/1 | L/D=30/1 | L/D=30/1 |
| R.P.M | 90~100 | 90~100 | 90~100 | ||
| RESIN CAPACITY | kg/hr | 450 | 235 | 170 | |
| MAIN MOTOR | Hp | AC176 | AC146 | AC100 | |
| HEATER CAPACITY | kw | 52.6 | 44 | 39 | |
| T-DIE | TYPE | . | HANGER MANIFOLD TYPE | ||
| HEATER CAPACITY | kw | 27.2 | 27.2 | 27.2 | |
| POLISHING ROLL | ROLL DIAMETER | m/m | Ø350-Ø500-Ø500 | Ø350-Ø500-Ø500 | Ø260-Ø350-Ø350 |
| ROLL MOTOR | Hp | 3-3-3 | 3-3-3 | 2-3-3 | |
| ROLL LINE SPEED | Min/M | 5~20 | 5~20 | 5~20 | |
| ROLL UP/DOWN METHED | . | PRESSURE CYLINDER | |||
| TAKE-UP | ROLL DIAMETER | mm | Ø260-Ø210 | Ø260-Ø210 | Ø260-Ø210 |
| ROLL MOTOR | Hp | 5 | 5 | 5 | |
| ROLL UP/DOWN METHED | . | AIR CYLINDER | |||
| WINDER | TYPE | . | 3' AIR SHAFT TYPE | ||
| TENSION METHED | . | POWDER CLUCH | |||
| WINDING DIAMETER | m/m | Max. Ø800 | Max. Ø800 | Max. Ø800 | |
| WINDING MOTOR | Hp | 5 | 5 | 5 | |
| TOTAL ELECTRIC | . | kw | 292.65 | 262 | 222 |
| TOTAL WEIGHT | . | kg | 14,000 | 12,000 | 11,000 |
