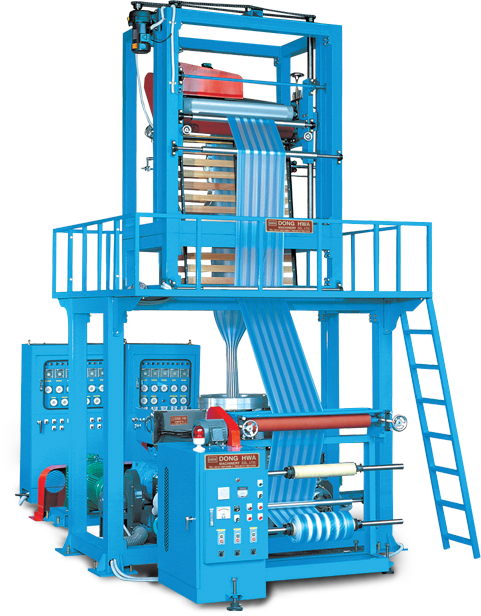

2색 필름 압출기
D
H
T
-
4
5
/
5
0

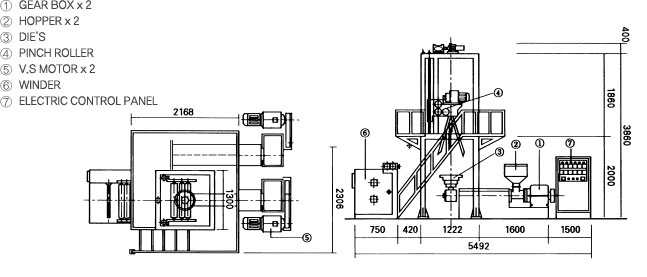

외형도
사양
| ITEM | UNIT | DHT-45 | DHT-50 | |
|---|---|---|---|---|
| FEATURE | MAX.EXTRUSION OUTPUT (LD/HD) | kg/hr | 30 ~ 25 | 45 ~ 38 |
| WIDTH OF THE FILM | m/m | 150 ~ 450 | 250 ~ 650 | |
| EXTRUDER | SCREW DIAMETER | m/m | Ø45 | Ø50 |
| LENGTH/DIAMETER RATIO OF SCREW(L/D) | . | 28:1 | 28:1 | |
| MAIN MOTOR | Hp | V.S 15 | V.S 20 | |
| HEATER CAPACITY | kw | 8 x 2 | 9 x 2 | |
| TAKE-UP | PINCH R/L | m/m | 800 | 1,000 |
| TAKE UP MOTOR | Hp | V.S 1 | V.S 1 | |
| TAKE UP SPEED | m/min | 10 ~ 100 | 10 ~ 100 | |
| TAKE ROLL | m/m | . | . | |
| WINDER | TYPE | . | 2 SHAFT/SEMI-AUTO TYPE | |
| WINDING DIAMETER | m/m | Ø500 | Ø500 | |
| WINDING MOTOR | kg/㎠ | T/Q 20 | T/Q 30 | |
| WINDING SIZE | kg | . | . | |
| OPTION DEVICE | Hopper Loader /Embossing Roller / Surface Treater | |||
