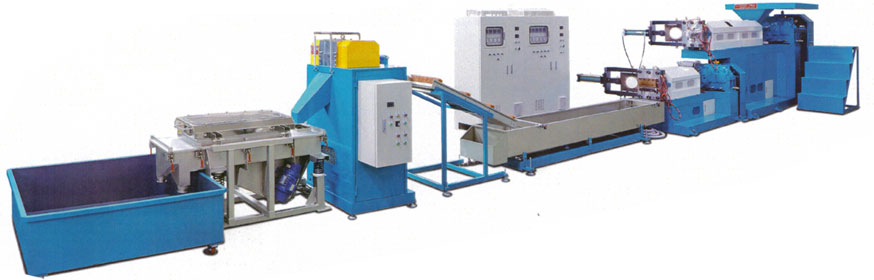

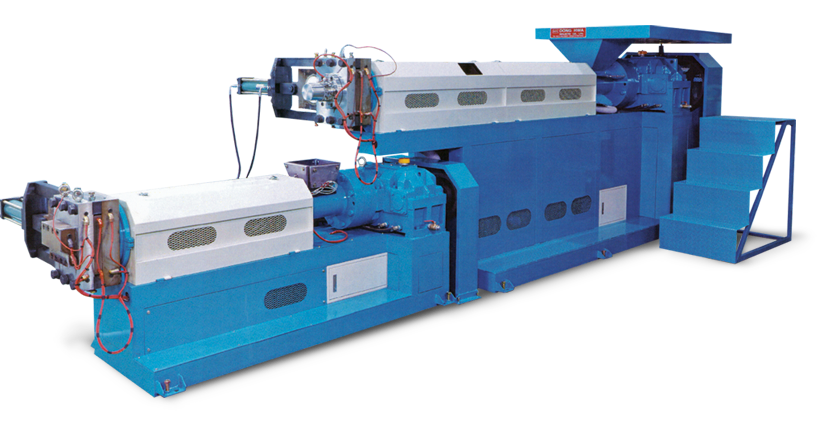

Recycling Machine Two Step

D H R - 1 3 0 X 1 2 0
Recycling Machine 2Step
Advantage of Hot die face cuttingrecycling machine includes

Extruder is directly fed with predensified material. Minimized damage (thermal degradation. Oxidation) to processed material.

Energy saving as compared to multi-stage processes.

Compact, space-saving design.

Shorter extruder overall length.

Reduced wear of screw and cylinder.

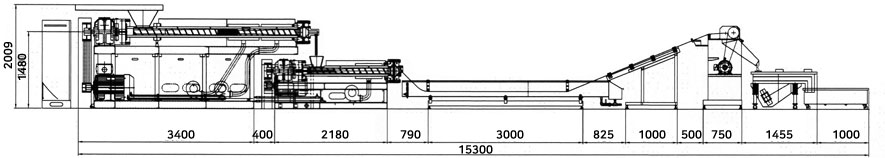

Dimension

Specifications

ITEM DHR-130x120 DHR-140x130
PELLET CUTTING METHOD Cold Cutting Cold Cutting
APPLICABLE SCRAPS HDPE, LDPE,
PP, PS, ABS.
HDPE, LDPE,
PP, PS, ABS.
CAPACITY / Hr 300kgs 350kgs
DRIVING MOTOR FOR GRANULATOR INV 10Hp INV 15Hp
MAIN MOTER INV 120Hp + INV 60Hp INV 150Hp + INV 75Hp
FEEDING METHOD FOR SCRAPS MANUAL MANUAL
*
