Recycling Machine
D
H
R
-
1
0
0
Advantage of Hot die face cuttingrecycling machine includes
Extruder is directly fed with predensified material.
Minimized damage (thermal degradation. Oxidation) to processed material.
Energy saving as compared to multi-stage processes.
Compact, space-saving design.

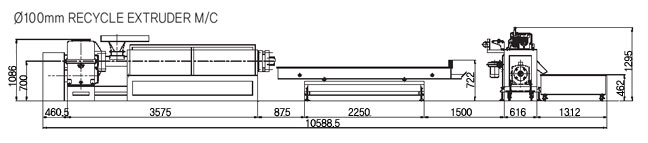

Dimension
Specifications
| ITEM | DHR-80 | DHR-100 | DHR-120 |
|---|---|---|---|
| PELLET CUTTING METHOD | Cold Cutting | Cold Cutting | Cold Cutting |
| APPLICABLE SCRAPS | HDPE, LDPE, PP, PS, ABS. |
200 ~ 450 | 200 ~ 500 |
| CAPACITY / Hr | 140kgs | 200kgs | 250kgs |
| DRIVING MOTOR FOR GRANULATOR | V.S. 3Hp | V.S. 5Hp | V.S. 7.5Hp |
| MAIN MOTER | I.M or V.S. 7.5Hp | I.M or V.S. 100Hp | I.M or V.S. 150Hp |
| FEEDING METHOD FOR SCRAPS | MANUAL | MANUAL | MANUAL |
*
