Multi-Layer Film Extruder
D
H
I
-
7
0
+
9
0

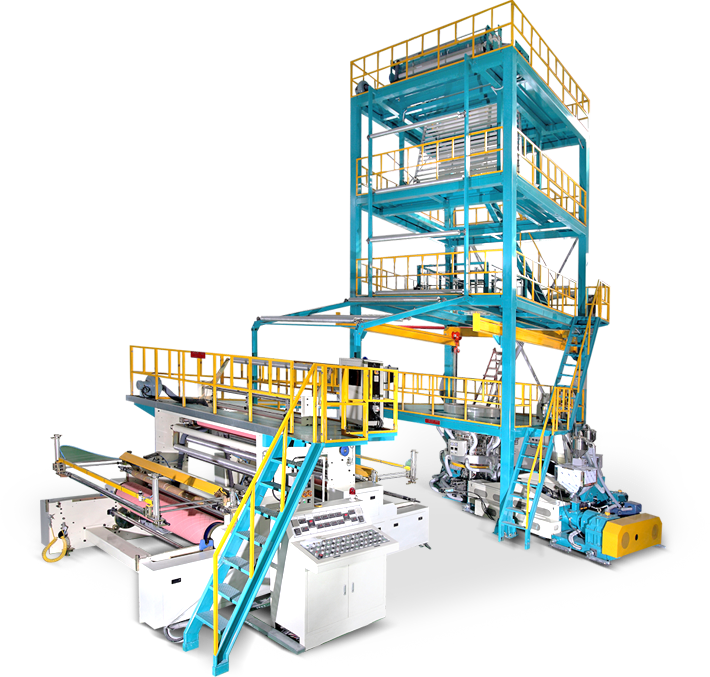

We are proud of introducing this High Speed blown this film extrusion equipment- DH series.
This model is our up-to-date manufacturing technique to produce LLDPE, LDPE, tubular blown film.
This machine produces all kind of shopping bag and small sized packing materials.

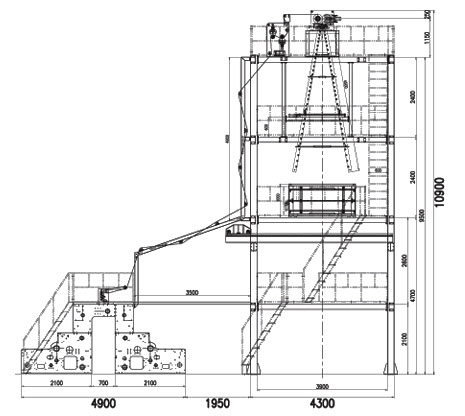

Dimension : (2-LAYER)
Specifications
| ITEM | UNIT | DHI-80 | DHI-100 | 2-Layer | 3-Layer | |
|---|---|---|---|---|---|---|
| DHI 70+90 | DHI 70+70+70 | |||||
| FEATURE | MAX.EXTRUSION OUTPUT (LD/LLD) | kg/hr | 130~165 | 150~210 | 150~210 | 150~210 |
| WIDTH OF THE FILM | m/m | 1000~1600 | 1200~2100 | 1200~2100 | 1200~2100 | |
| EXTRUDER | SCREW DIAMETER | m/m | Ø80 | Ø100 | Ø70, Ø90 | Ø70+Ø70+Ø70 |
| LENGTH/DIAMETER RATTIO OF SCREW(L/D) | L/D | 30:1 | 30:1 | 30:1 | 30:1 | |
| MAIN MOTOR | Hp | A.C 100 | A.C 120 | A.C 75, A.C 120 | A.C 75 | |
| HEATER CAPACITY | kw | 40 | 50 | 90 | 110 | |
| TAKE-UP | PINCH ROLLER | m/m | 1800 | 2300 | 2300 | 2300 |
| TAKE UP MOTOR | Hp | A.C 5HP | A.C 5HP | A.C 5HP | A.C 5HP | |
| TAKE UP SPEED | m/min | 10~50 | 10~50 | 10~50 | 10~50 | |
| TAKE OFF SIZE(WxLxH) | m/min | 4000x9,500x11,000 | 4500x10,000x12,000 | 5500x10,000x12,000 | 5500x10,000x12,000 | |
| WINDER | TYPE | . | AUTO SURFACE TYPE | |||
| WINDING DIAMETER | m/m | Ø700 | Ø700 | Ø700 | Ø700 | |
| SINDING MOTOR | g/cm2 | A.C 5HP | A.C 5HP | A.C 5HP | A.C 5HP | |
| TOTAL WEIGHT | kg | 11,000 | 14,000 | 16,000 | 17,000 | |
| OPTION DEVICE | Hopper Loader, Embossing Roller, Surface Treater (CORONA) | |||||
*
