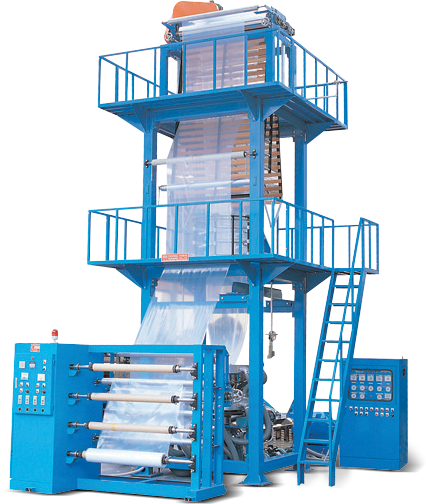

General Film Extruder

D H S - 7 0 / 9 0
General Film Extruder

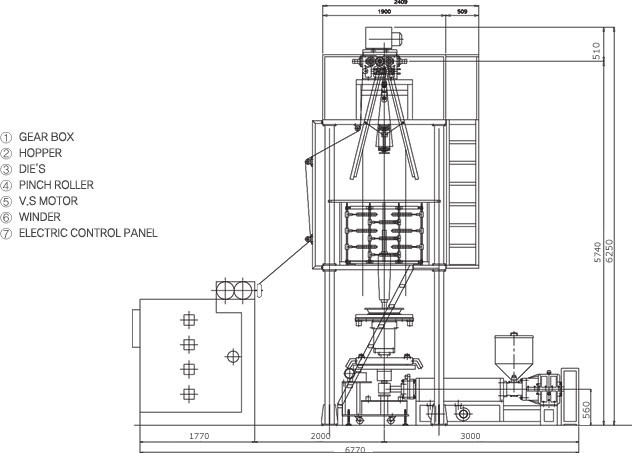

Dimension

Specifications

ITEM UNIT DHS-70 DHS-90
FEATURE MAX.EXTRUSION OUTPUT (LD/HD) kg/hr 150 ~ 180 180 ~ 250
WIDTH OF THE FILM m/m 100 ~ 1500 1200 ~ 2200
EXTRUDER SCREW DIAMETER m/m Ø70 Ø90
LENGTH/DIAMETER RATIO OF SCREW(L/D) . 28:1 28:1
MAIN MOTOR Hp V.S 50 V.S 100
HEATER CAPACITY kw 25 38
TAKE-UP PINCH R/L m/m 1600 2400
TAKE UP MOTOR Hp V.S 2 V.S 3
TAKE UP SPEED m/min 10~40 10~40
TAKE OFF SIZE(WxLxH) m/m 3,000x3,500x6,500 3,800x4,000x9,500
WINDER TYPE . 4 SHAFT/SEMI-AUTO TYPE
WINDING DIAMETER m/m Ø500 Ø600
WINDING MOTOR kg/㎠ V.S /HP V.S/5HP
WINDING SIZE kg . .
OPTION DEVICE Hopper Loader /Embossing Roller / Surface Treater
*
